FINEO Hybrid - High efficiency double glazing
FINEO Hybrid achieves a u-value between 0.4 and 0.5 W/(m².K) with a total thickness between 22 and 34 mm. This solution is ideal for renovation of old double glazing, or for new construction with high performances requirements.
FINEO HYBRID ALLOWS UNREACHED LEVEL OF FLEXIBILITY

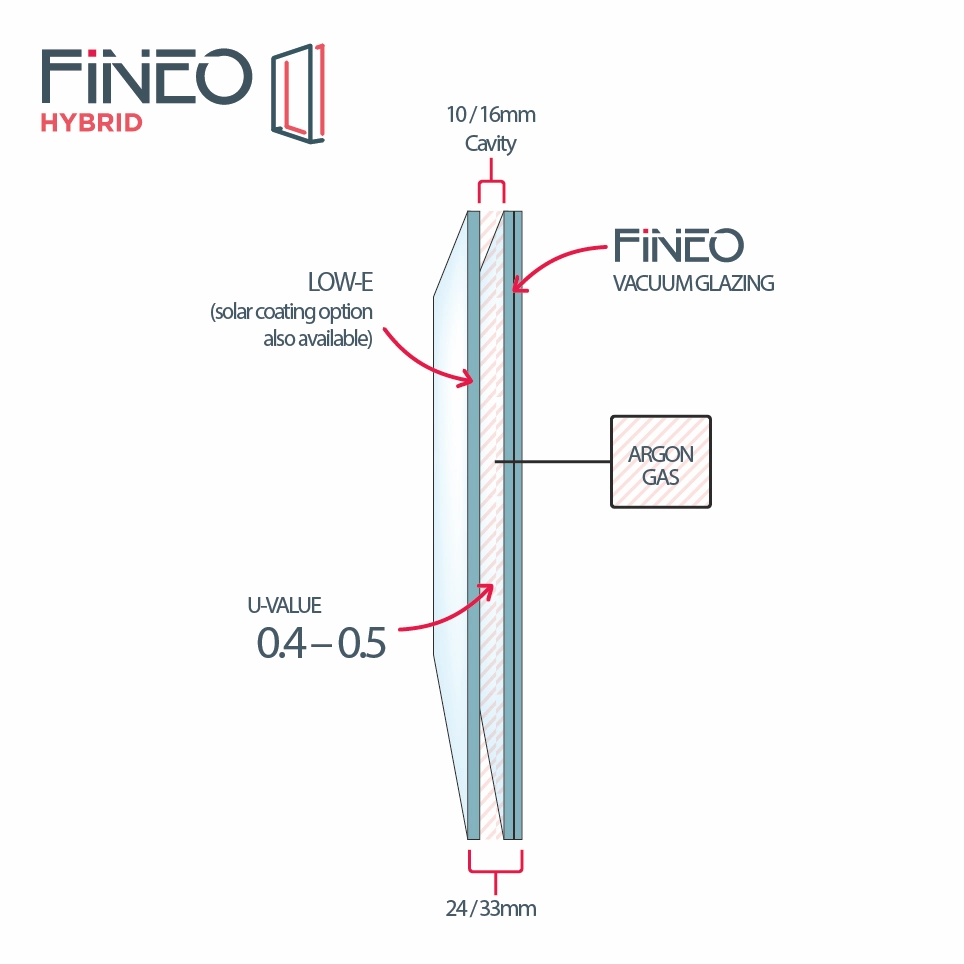

In its Hybrid version, FINEO is assembled in a double glazing unit. This insulating glazing, where FINEO is used as one pane of a double glazing, leads to unprecedent thermal and acoustic performances. FINEO Hybrid is the solution for renovation or new construction located in urban area, where high acoustic insulation is required. It is also ideal for continental climate, where temperature can drop drastically during winter.
KEY FIGURES
| FINEO Hybrid product-details.high-efficiency-double-glazing.FINEO Hybrid 6mm 1.0 / 10mm 90% Ar / FINEO 10 | Double glazing | Triple glazing |
|---|---|---|
|
U-value
(W/m²K)
|
||
| 0.5 | 1.1 | 0.7 |
|
Inside glazing pane temperature
(°C)
|
||
| 19 | 14.9 | 17.5 |
|
Light transmission
(%)
|
66 | 80 | 65 |
|
Solar heat gain factor
|
||
| 0.43 | 0.76 | 0.52 |
|
Traffic noise attenuation
(dB)
|
||
| 35 | 27 | 27 |
|
Thickness
|
||
| 25.7 | 24 | 44 |
| FINEO Hybridproduct-details.high-efficiency-double-glazing.FINEO Hybrid 6mm 1.0 / 10mm 90% Ar / FINEO 10 | Double glazing | Triple glazing | |
|---|---|---|---|
U-value
(W/m²K)
|
0.5 | 1.1 | 0.7 |
Inside glazing pane temperature
For an outside temperature of -10°C and an inside temperature of 20°C (°C)
|
19 | 14.9 | 17.5 |
Light transmission (%)
|
66 | 80 | 65 |
Solar heat gain factor
|
0.43 | 0.76 | 0.52 |
Traffic noise attenuation
(dB)
|
35 | 27 | 27 |
Thickness
(MM)
|
25.7 | 24 | 44 |
